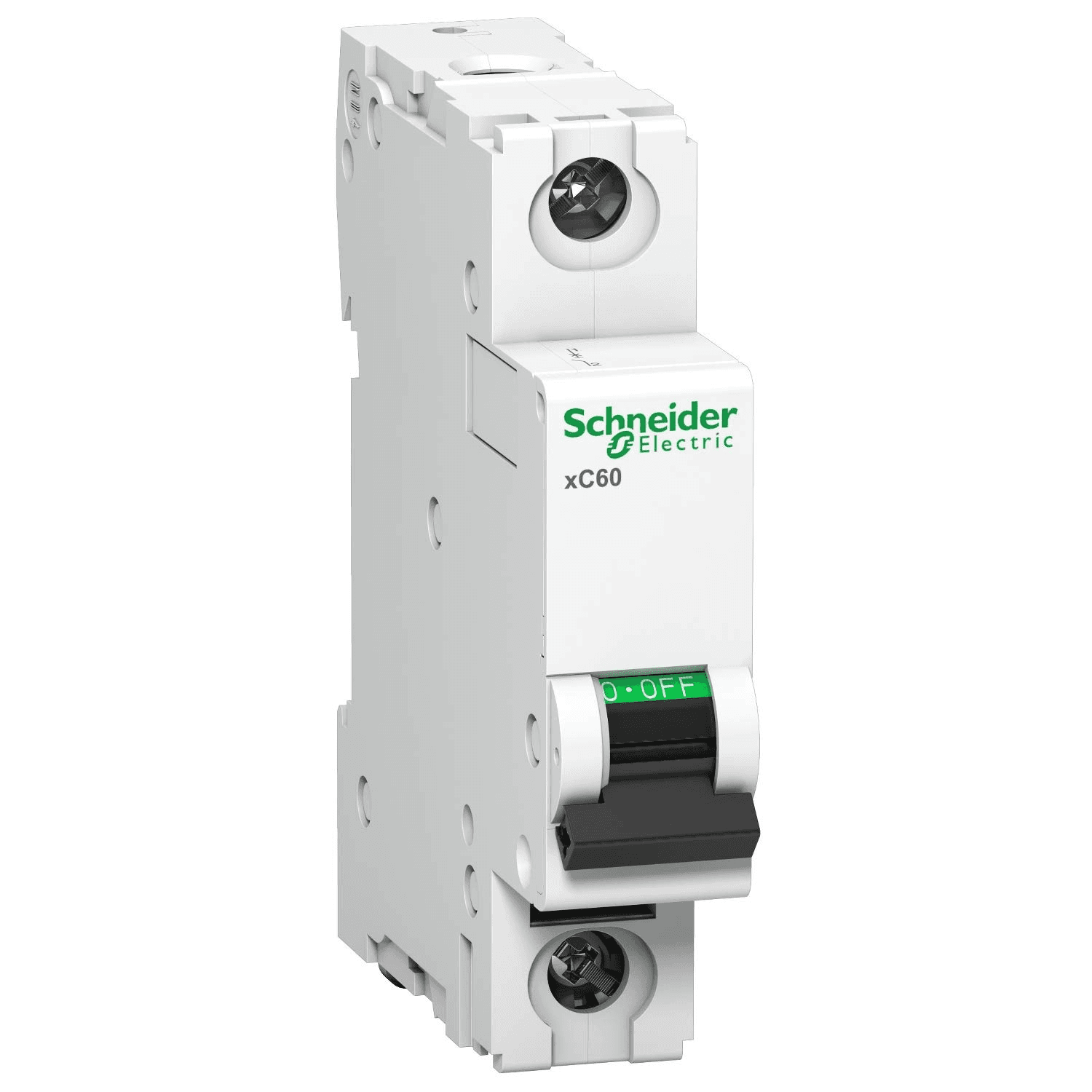

Schneider 4A Single Pole C Curve XC60 MCB, A9N1P4C

Description

This Acti9 xC60 is a multistandard low voltage biconnect miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected poles and 4A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 15 kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation.
